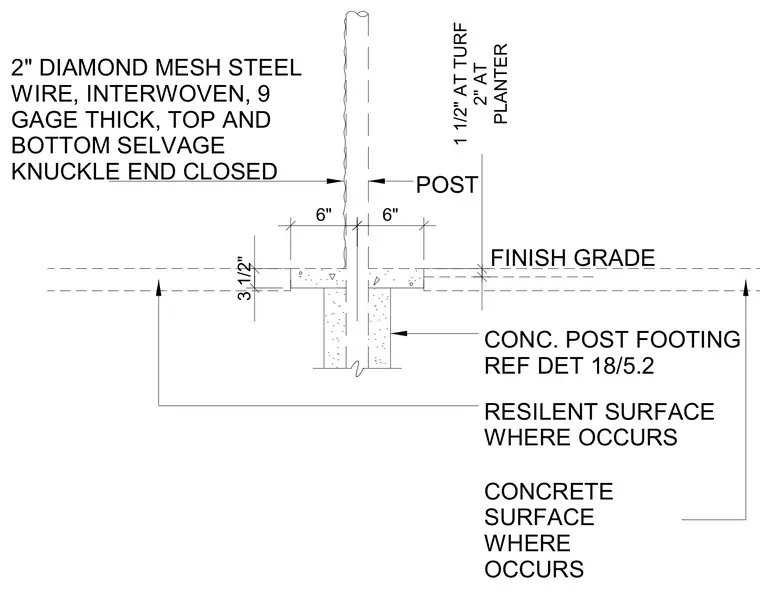

A steel post is embedded into a concrete post footing measuring three and a half inches thick with six-inch clearances. The assembly features two-inch diamond mesh steel wire of nine gauge thickness, with top and bottom selvage knuckle ends closed. Finish grades vary with one and a half inches at turf and two inches at planters. Resilient surfaces or concrete surfaces occur at grade level as indicated.
6" 6" 1 1/2" AT TURF 2" AT PLANTER 3 1/2" CONC. POST FOOTING REF DET 18/5.2 POST 2" DIAMOND MESH STEEL WIRE, INTERWOVEN, 9 GAGE THICK, TOP AND BOTTOM SELVAGE KNUCKLE END CLOSED FINISH GRADE RESILENT SURFACE WHERE OCCURS CONCRETE SURFACE WHERE OCCURS
