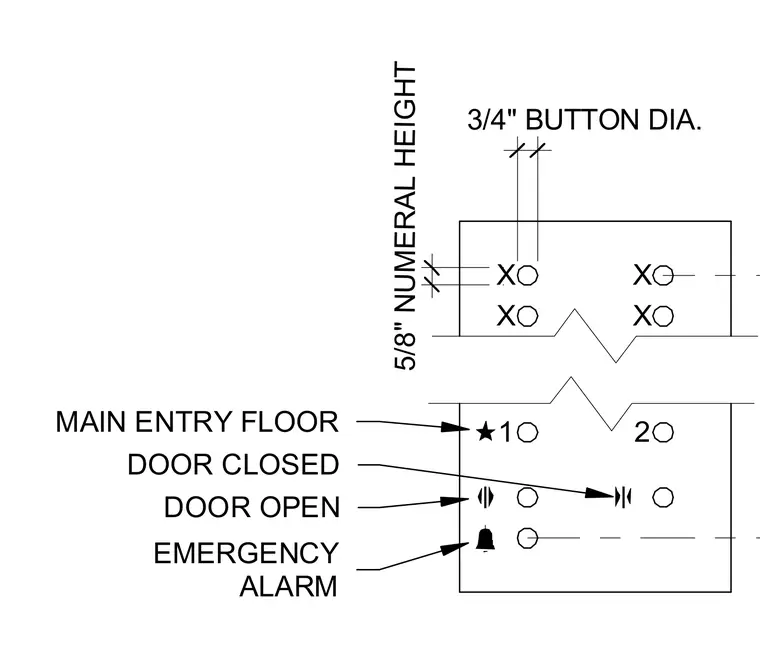

An elevator control panel layout specifies button configurations with a three-quarter inch button diameter and five-eighth inch numeral height. Functional callouts designate the main entry floor, door closed, door open, and emergency alarm controls.
X X X X 1 2 5/8" NUMERAL HEIGHT 3/4" BUTTON DIA. EMERGENCY ALARM DOOR OPEN DOOR CLOSED MAIN ENTRY FLOOR
