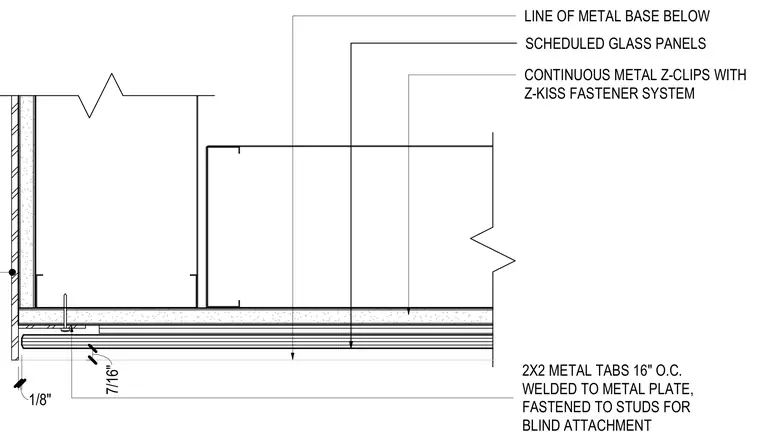

Scheduled 7/16-inch glass panels attach to the assembly using continuous metal Z-clips with a Z-kiss fastener system. Two-by-two-inch metal tabs spaced at sixteen inches on center are welded to a metal plate and fastened to studs for blind attachment, aligning with the line of the metal base below.
CONTINUOUS METAL Z-CLIPS WITH Z-KISS FASTENER SYSTEM LINE OF METAL BASE BELOW 7/16" SCHEDULED GLASS PANELS 2X2 METAL TABS 16" O.C. WELDED TO METAL PLATE, FASTENED TO STUDS FOR BLIND ATTACHMENT 1/8"
