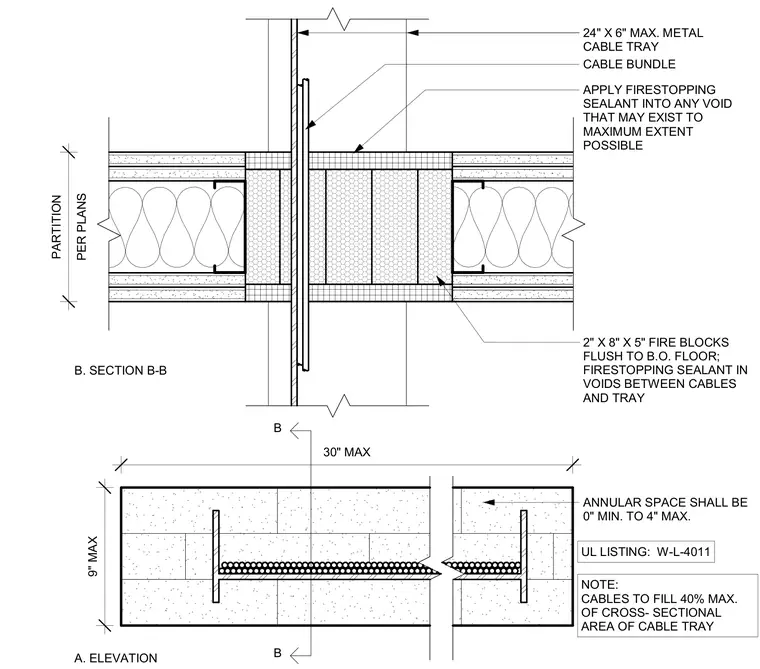

A twenty-four by six inch maximum metal cable tray penetrates a partition assembly with a cable bundle filling a maximum of forty percent of the cross-sectional area. Two by eight by five inch fire blocks are installed flush to the bottom of the floor. Firestopping sealant fills voids between cables, the cable tray, and any surrounding gaps up to a maximum four inch annular space. The installation complies with UL Listing W-L-4011 with sealant applied to the maximum extent possible.
B. SECTION B-B 2" X 8" X 5" FIRE BLOCKS FLUSH TO B.O. FLOOR; FIRESTOPPING SEALANT IN VOIDS BETWEEN CABLES AND TRAY CABLE BUNDLE UL LISTING: W-L-4011 NOTE: CABLES TO FILL 40% MAX. OF CROSS- SECTIONAL AREA OF CABLE TRAY 24" X 6" MAX. METAL CABLE TRAY ANNULAR SPACE SHALL BE 0" MIN. TO 4" MAX. APPLY FIRESTOPPING SEALANT INTO ANY VOID THAT MAY EXIST TO MAXIMUM EXTENT POSSIBLE PER PLANS PARTITION A. ELEVATION B B 9" MAX 30" MAX
