Architectural · A-MXAZ5

Typical Metal Framing Details

Materials

Concrete Reinforced Concrete Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Doors Foundations / Footings Millwork / Casework Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

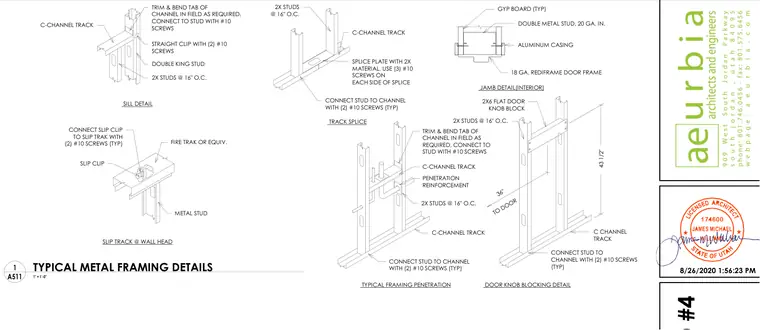

These architectural details illustrate standard cold-formed metal framing connections including a slip track at the wall head with a slip clip attached using two number ten screws on each side, a sill detail featuring a double king stud and straight clip, and a C-channel track splice plate reinforced with two-by wood material secured with three number ten screws on each side of the splice. Additional details show typical framing penetrations with trimmed C-channel tabs connected to studs, an interior jamb detail with an eighteen gauge Rediframe door frame, twenty gauge double metal studs, and aluminum casing, as well as a door knob blocking detail incorporating a two-by-six flat blocking member positioned thirty-six inches to the door and forty-three and one-half inches above the track.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
