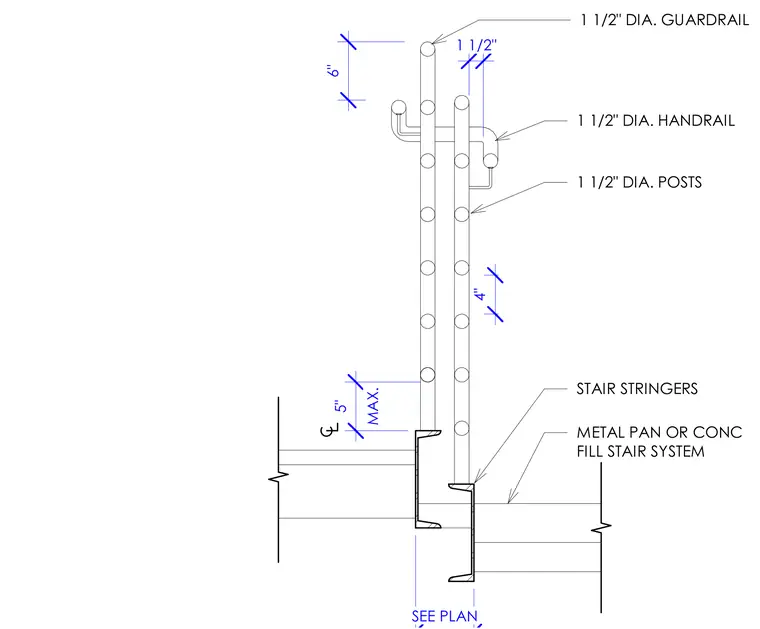

One-and-one-half-inch diameter posts anchor into metal pan or concrete-fill stair stringers sized per plan. A one-and-one-half-inch diameter handrail projects from the posts while a one-and-one-half-inch diameter guardrail tops the assembly. Dimensional clearances include a maximum five-inch spacing at the base and six-inch spacing near the top guardrail elements.
1 1/2" DIA. GUARDRAIL MAX. 5" 6" 1 1/2" 1 1/2" DIA. POSTS STAIR STRINGERS METAL PAN OR CONC FILL STAIR SYSTEM SEE PLAN 1 1/2" DIA. HANDRAIL 4"
