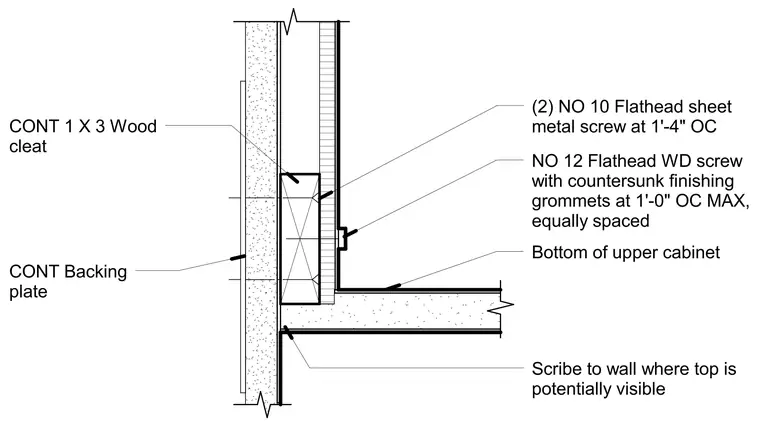

An upper cabinet is secured to the wall through a continuous 1x3 wood cleat fastened with two number 10 flathead sheet metal screws spaced at 1 foot 4 inches on center. The cabinet back is anchored to a continuous backing plate concealed within the wall framing. A number 12 flathead wood screw with a countersunk finishing grommet fastens the cabinet at a maximum of 1 foot 0 inches on center, equally spaced along the bottom of the upper cabinet. The top of the assembly requires scribing to the wall where visible.
NO 12 Flathead WD screw with countersunk finishing grommets at 1'-0" OC MAX, equally spaced (2) NO 10 Flathead sheet metal screw at 1'-4" OC Bottom of upper cabinet Scribe to wall where top is potentially visible CONT Backing plate CONT 1 X 3 Wood cleat
