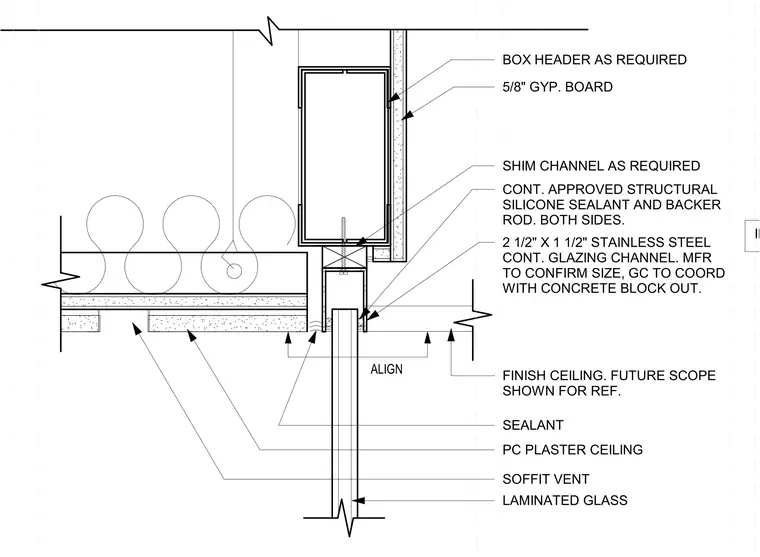

The laminated glass head is secured in a continuous 2 1/2-inch by 1 1/2-inch stainless steel glazing channel with shims and continuous approved structural silicone sealant and backer rod on both sides. The channel fastens below a box header aligned as required and wrapped in five-eighths-inch gypsum board. A plaster ceiling finish and soffit vent tie into the assembly adjacent to the glazing head with sealant joints.
LAMINATED GLASS 5/8" GYP. BOARD SEALANT PC PLASTER CEILING SOFFIT VENT FINISH CEILING. FUTURE SCOPE SHOWN FOR REF. ALIGN BOX HEADER AS REQUIRED 2 1/2" X 1 1/2" STAINLESS STEEL CONT. GLAZING CHANNEL. MFR TO CONFIRM SIZE, GC TO COORD WITH CONCRETE BLOCK OUT. SHIM CHANNEL AS REQUIRED CONT. APPROVED STRUCTURAL SILICONE SEALANT AND BACKER ROD. BOTH SIDES. INTERIOR
