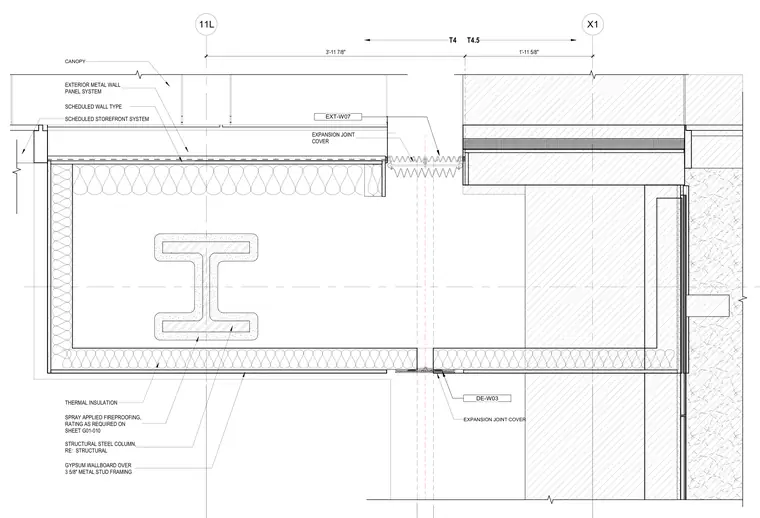

An expansion joint assembly bridges the structural gap between a structural steel column enclosed in spray-applied fireproofing and gypsum wallboard over 3 5/8-inch metal stud framing, and an adjacent exterior wall type. The joint is finished with scheduled expansion joint covers at the interior and exterior lines. A canopy structural assembly ties into the column grid lines above. Thermal insulation fills the framing cavities adjacent to the structural steel.
11L X1 SCHEDULED STOREFRONT SYSTEM EXTERIOR METAL WALL PANEL SYSTEM SCHEDULED WALL TYPE EXPANSION JOINT COVER THERMAL INSULATION SPRAY APPLIED FIREPROOFING, RATING AS REQUIRED ON SHEET G01-010 STRUCTURAL STEEL COLUMN, RE: STRUCTURAL GYPSUM WALLBOARD OVER 3 5/8" METAL STUD FRAMING 3'-11 7/8" 1'-11 5/8" DE-W03 EXT-W07 EXPANSION JOINT COVER T4.5 T4 CANOPY
