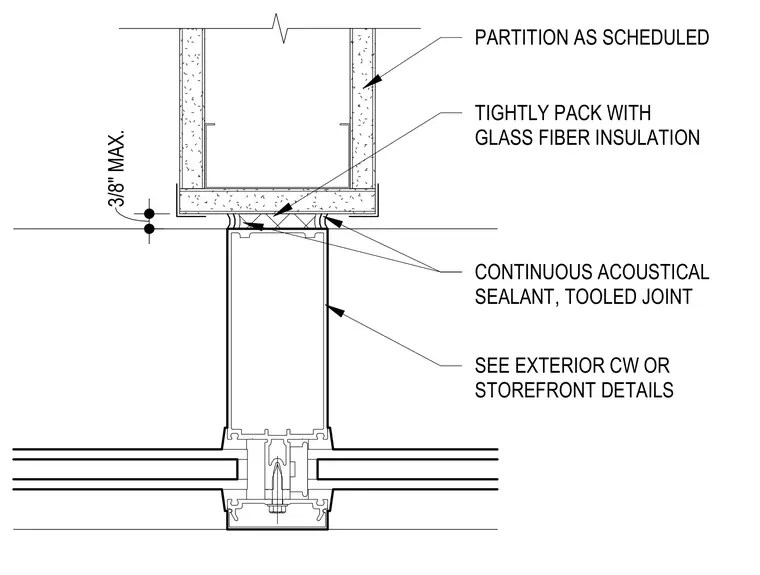

An interior partition as scheduled terminates at an exterior curtain wall or storefront mullion with a maximum three-eighths-inch joint. The gap is tightly packed with glass fiber insulation for thermal and acoustic performance. Continuous acoustical sealant with a tooled joint is applied on both sides at the junction with the storefront framing member.
PARTITION AS SCHEDULED TIGHTLY PACK WITH GLASS FIBER INSULATION SEE EXTERIOR CW OR STOREFRONT DETAILS CONTINUOUS ACOUSTICAL SEALANT, TOOLED JOINT 3/8" MAX.
