Counter - Wall Hung - Floating Sink

Materials

Steel

Elements

Columns Walls Millwork / Casework

Connections

HSS Connection Welded Connection

About this detail

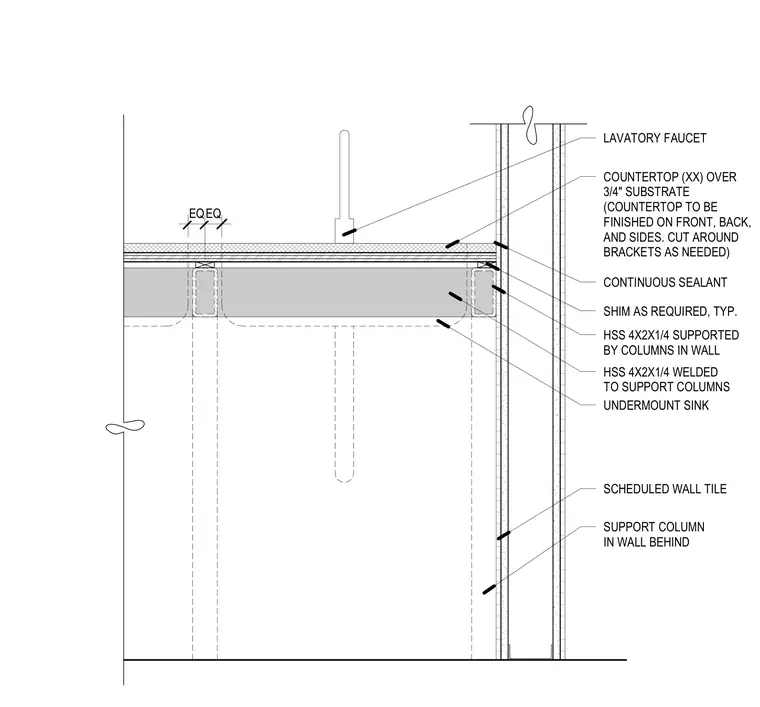

A wall-hung floating sink counter features an undermount sink and a countertop over a three-quarter inch substrate. The countertop is finished on the front, back, and sides, and cut around brackets as needed. Hollow structural section 4x2x1/4 steel members are welded to support columns concealed within the wall behind. Shims are used as required, and continuous sealant is applied at the wall junction over scheduled wall tile.
