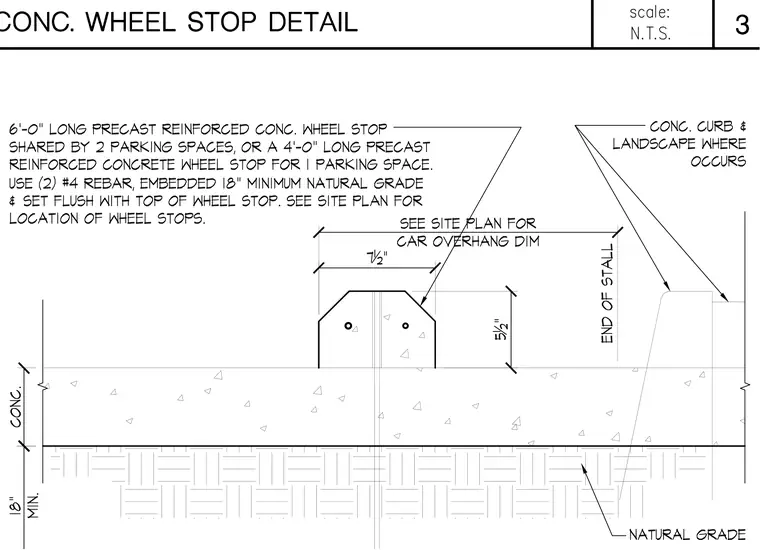

A six-foot-long precast reinforced concrete wheel stop is shared by two parking spaces, or a four-foot-long version serves one parking space. Two number four reinforcing bars are embedded eighteen inches minimum into natural grade and set flush with the top of the wheel stop. The wheel stop sits on a concrete slab over eighteen inches minimum natural grade. An adjacent concrete curb and landscape area occurs where noted, with a seven-and-a-half-inch profile and a five-and-a-half-inch height.
