Architectural · A-MW9QJ

Curtain Wall Parapet and Roof Edge Detail

Materials

Concrete Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Curtain Walls Facades / Cladding Roofs Parapets Decks Waterproofing / Flashing Insulation

Connections

Shear Stud / Composite

About this detail

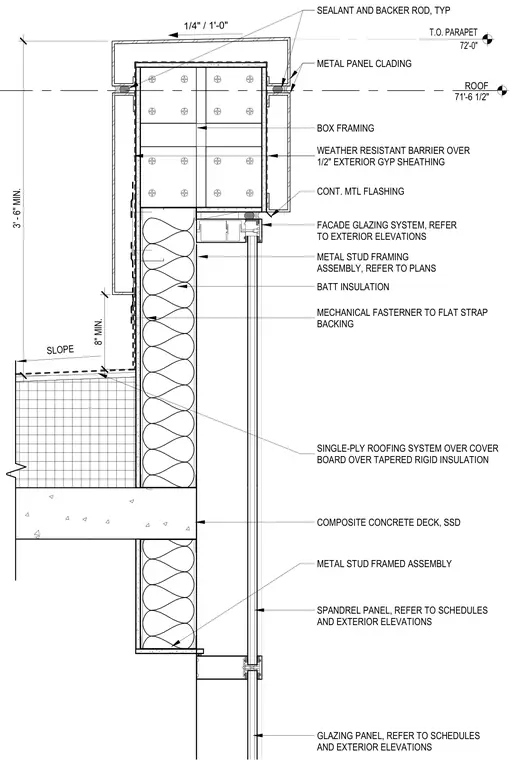

This wall section details a roof parapet terminating above a multi-story facade glazing and spandrel panel system. The assembly bears on a composite concrete deck with a single-ply roofing system installed over a cover board and tapered rigid insulation. Exterior cold-formed metal stud framing is faced with exterior gypsum sheathing, weather-resistant barrier, and continuous metal flashing at the transition. A top box framing supports the metal panel cladding and coping cap sealed with typical sealant and backer rod. The structural configuration maintains a minimum three-foot-six-inch parapet height with interior batt insulation within the metal stud cavity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
