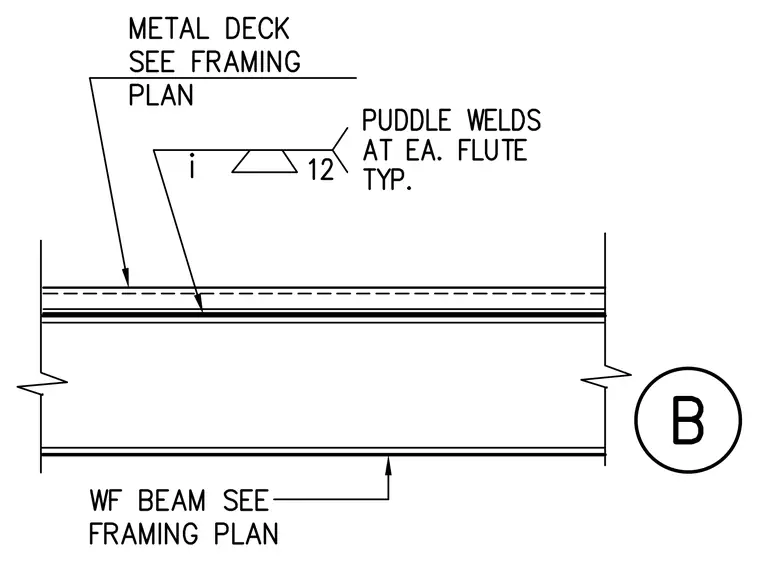

Metal deck is supported by a wide flange beam sized per the framing plan. The metal deck is secured to the beam flange with puddle welds at each flute, typically. The size and spacing of the deck and beam are specified on the structural framing plan.
