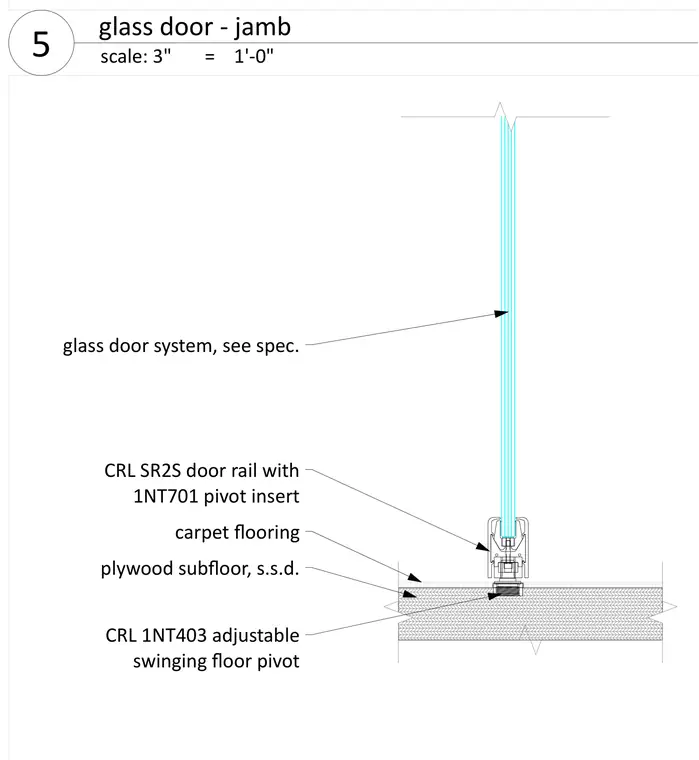

A glass door system sits within a CRL SR2S door rail equipped with a 1NT701 pivot insert. The door rail connects to a CRL 1NT403 adjustable swinging floor pivot embedded in the flooring assembly. The floor assembly consists of carpet flooring over a plywood subfloor.
glass door system, see spec. CRL SR2S door rail with 1NT701 pivot insert plywood subfloor, s.s.d. CRL 1NT403 adjustable swinging floor pivot carpet flooring scale: 3" = 1'-0" 5 glass door - jamb
