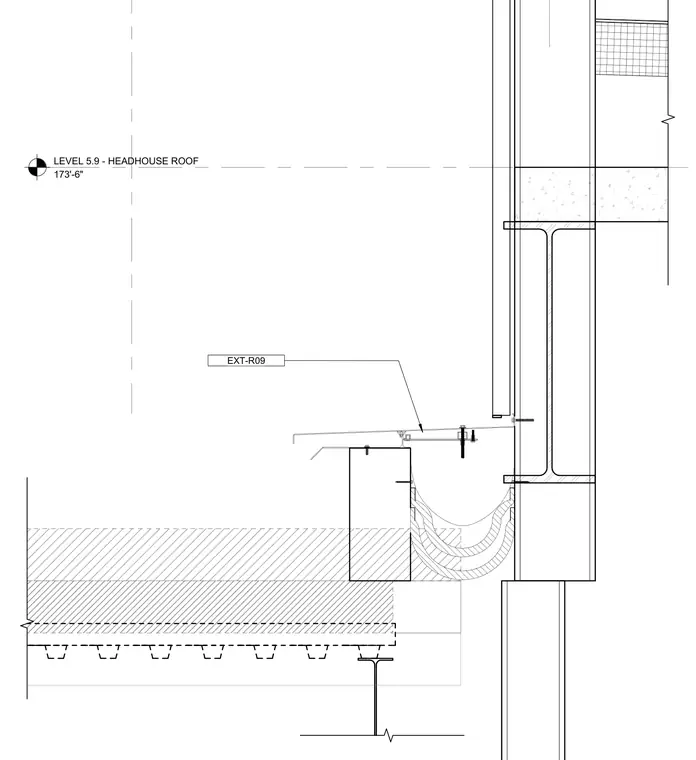

A built-up roof assembly terminates at a structural steel framing line with a roof edge flashing and internal gutter system. The roof deck bears near a steel spandrel beam while structural columns extend past the roof level. Flashing and support framing tie back into the exterior wall assembly adjacent to the structural column.
