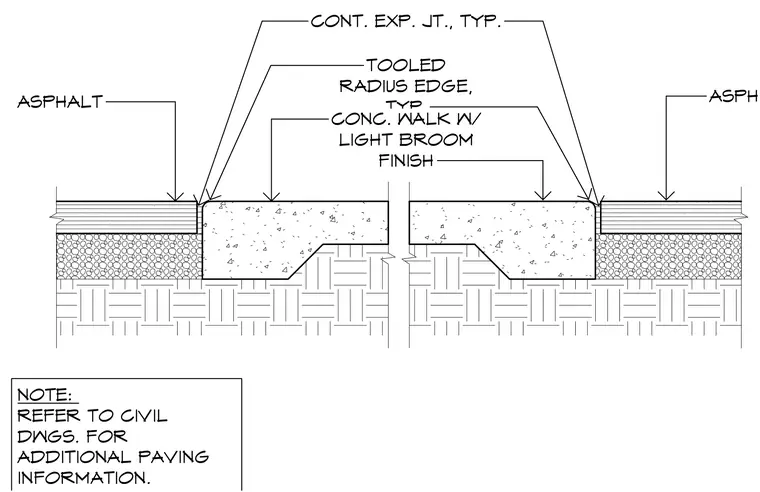

A concrete walk featuring a light broom finish and a typical tooled radius edge abuts an adjacent asphalt paving section. A continuous expansion joint separates the concrete walkway from the asphalt surface. Subgrade preparation and additional paving information are coordinated with civil drawings.
NOTE: REFER TO CIVIL DWGS. FOR ADDITIONAL PAVING INFORMATION. CONT. EXP. JT., TYP. TOOLED RADIUS EDGE, TYP. CONC. WALK W/ LIGHT BROOM FINISH ASPHALT ASPHALT
