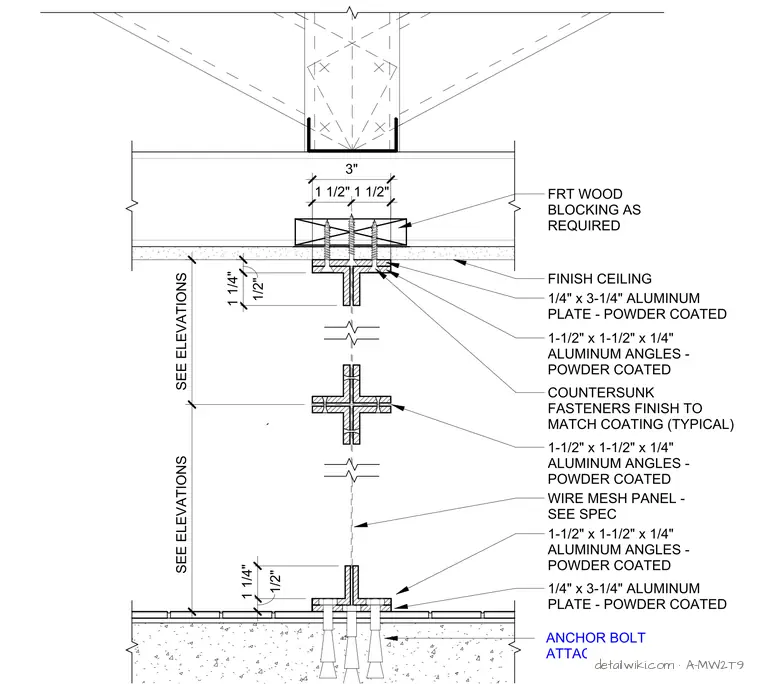

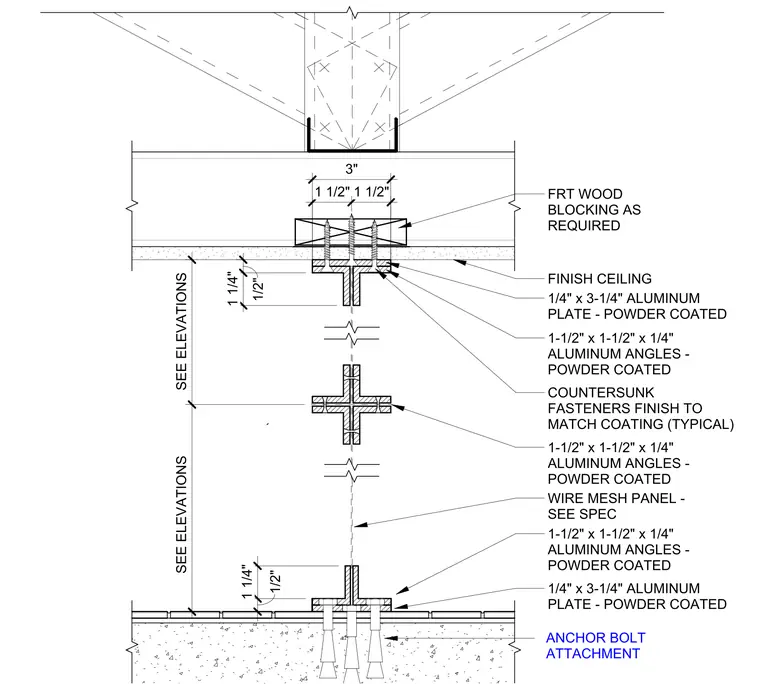

A pair of 1-1/2 inch by 1-1/2 inch by 1/4 inch powder-coated aluminum angles secure the wire mesh panel at the head and base. At the head, these angles fasten to a 1/4 inch by 3-1/4 inch powder-coated aluminum plate anchored into fire-retardant treated wood blocking. At the base, the angles fasten to a 1/4 inch by 3-1/4 inch powder-coated aluminum plate secured to the floor substrate via anchor bolt attachments. Countersunk fasteners finished to match the coating hold the wire mesh panel between the angles. Project elevations determine the vertical spacing between the head and base assemblies.
