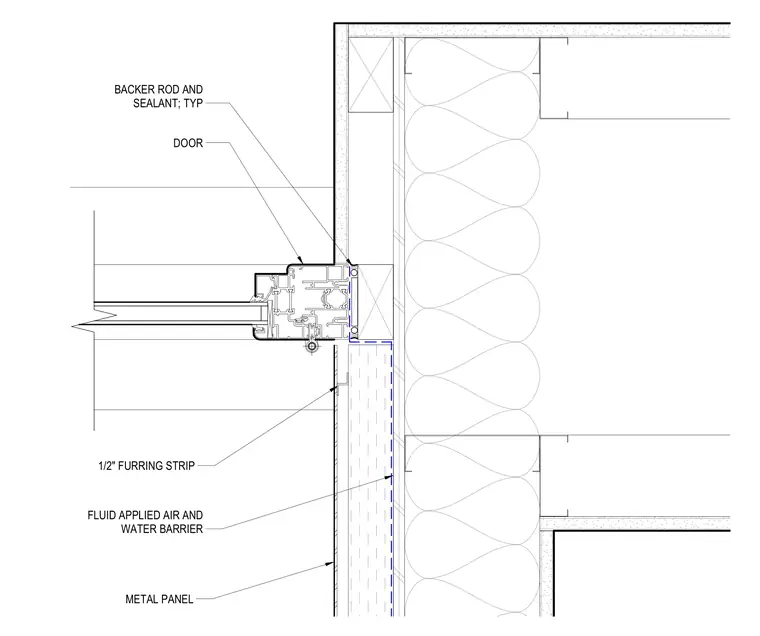

The folding door jamb is installed adjacent to a metal panel wall assembly. A one-half-inch furring strip supports the metal panel system over a fluid-applied air and water barrier. The perimeter joint between the door frame and the wall is sealed with backer rod and typical sealant.
DOOR 1/2" FURRING STRIP METAL PANEL BACKER ROD AND SEALANT; TYP FLUID APPLIED AIR AND WATER BARRIER
