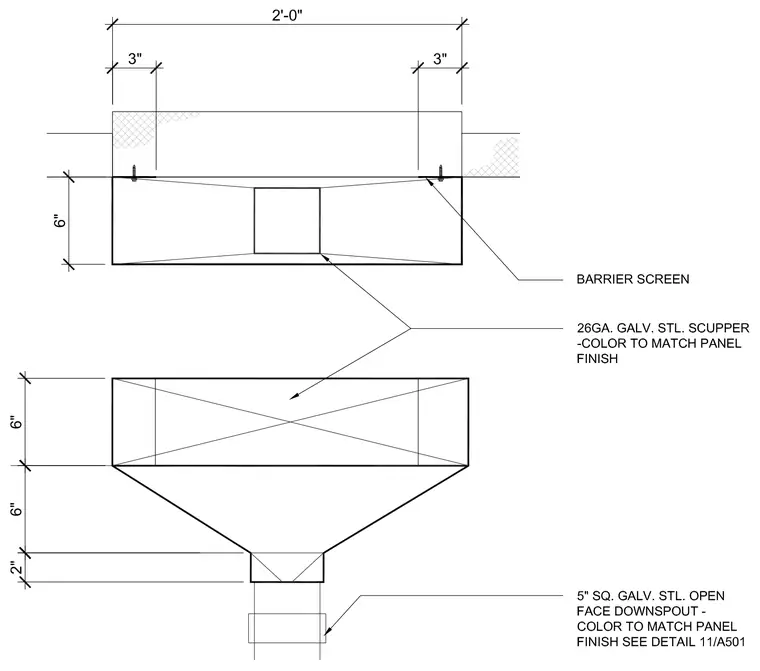

A twenty-six gauge galvanized steel scupper with a color-matched panel finish discharges water through a wall opening. A barrier screen is secured at the intake with fasteners positioned three inches from the edges across a total two-foot opening width. The scupper transitions downward over a six-inch vertical drop into a tapered collector funnel measuring six inches deep, narrowing to a two-inch collar. A five-inch square galvanized steel open-face downspout connects below, finished to match the panel finish per detail 11/A501.
