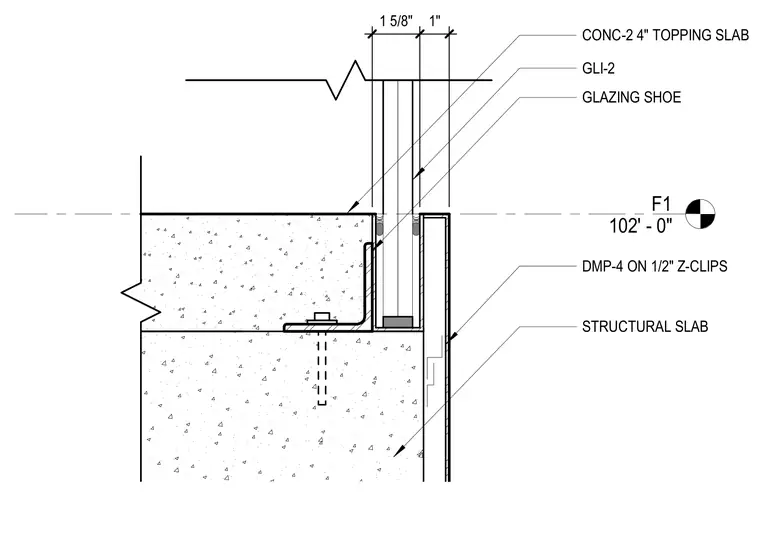

The assembly anchors a glass guardrail into a structural concrete slab finished with a four-inch concrete topping slab. A glazing shoe holds the glass panel, secured adjacent to the slab edge. A metal panel finish designated as DMP-4 is mounted on one-half inch Z-clips along the edge. Dimensional clearances of one and five-eighths inches and one inch govern the setting of the glazing components.
F1 102' - 0" DMP-4 ON 1/2" Z-CLIPS GLI-2 STRUCTURAL SLAB CONC-2 4" TOPPING SLAB GLAZING SHOE 1 5 / 8 " 1 "
