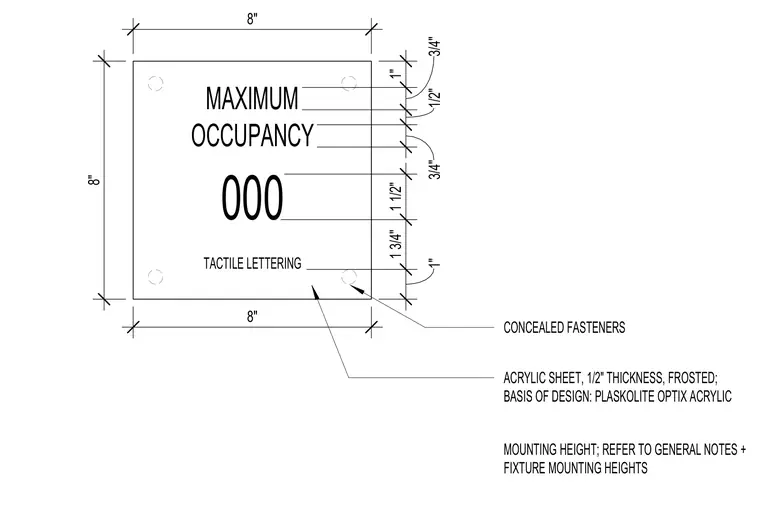

The maximum occupancy sign consists of a half-inch thick frosted acrylic sheet measuring eight by eight inches with tactile lettering and concealed fasteners. The basis of design is Plaskolite Optix acrylic mounted at heights referenced in the general notes and fixture mounting height schedule.
ACRYLIC SHEET, 1/2" THICKNESS, FROSTED; BASIS OF DESIGN: PLASKOLITE OPTIX ACRYLIC CONCEALED FASTENERS MOUNTING HEIGHT; REFER TO GENERAL NOTES + FIXTURE MOUNTING HEIGHTS 000 8" 8" 8" TACTILE LETTERING 1" 1 3/4" 1 1/2" MAXIMUM OCCUPANCY 1" 3/4" 1/2" 3/4"
