A full height architectural cabinet assembly with a plastic laminate finish and an inset glass upper door. The upper cabinet features a three-inch plastic laminate frame enclosing a quarter-inch tempered glass panel, with three adjustable plastic laminate finish shelves inside. Heavy-use commercial-grade soft-close concealed hinges in a brushed stainless steel finish hang the doors, supplemented by a mid hinge as required and a Doug Mockett DP129-SSS flat top pull. The lower cabinet door aligns with adjacent base cabinet doors per elevations, while the top of the cabinet scribes directly to the ceiling with a one-inch soffit where conditions occur.

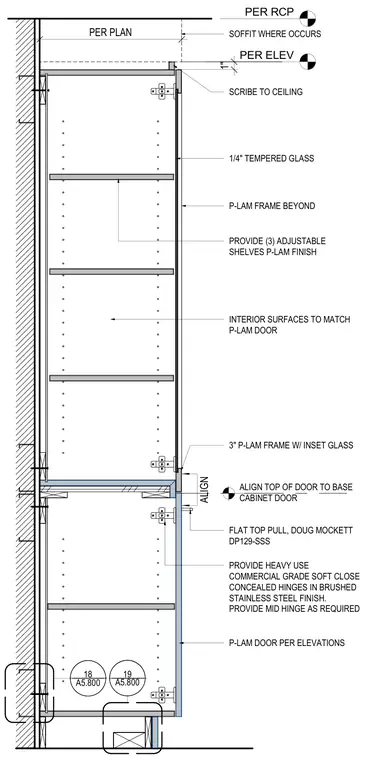

PER PLAN 1" SOFFIT WHERE OCCURS 1/4" TEMPERED GLASS PROVIDE (3) ADJUSTABLE SHELVES P-LAM FINISH PROVIDE HEAVY USE COMMERCIAL GRADE SOFT CLOSE CONCEALED HINGES IN BRUSHED STAINLESS STEEL FINISH. PROVIDE MID HINGE AS REQUIRED FLAT TOP PULL, DOUG MOCKETT DP129-SSS INTERIOR SURFACES TO MATCH P-LAM DOOR PER RCP SCRIBE TO CEILING ________ ________ 19 A5.800 ________ ________ 18 A5.800 PER ELEV P-LAM DOOR PER ELEVATIONS ALIGN 3" P-LAM FRAME W/ INSET GLASS ALIGN TOP OF DOOR TO BASE CABINET DOOR P-LAM FRAME BEYOND
