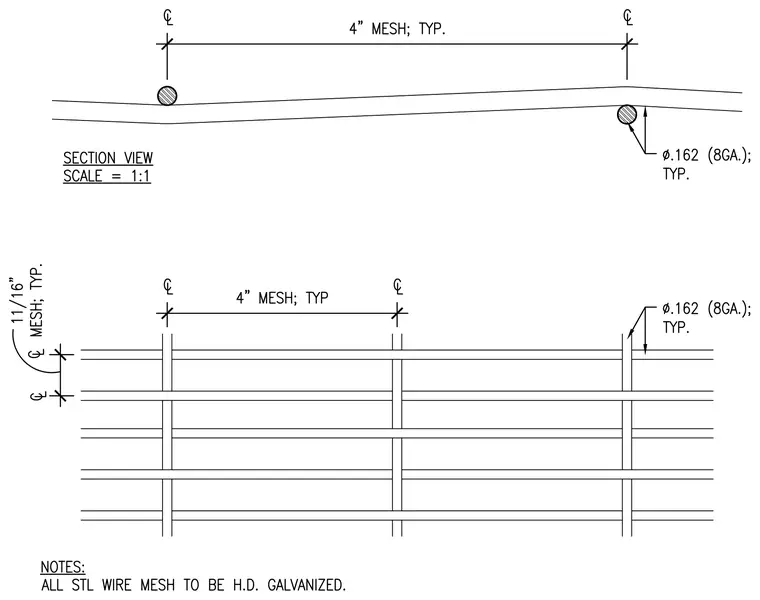

This drawing provides section and plan views of welded wire mesh reinforcement detailing wire dimensions and grid spacing. The mesh consists of 0.162 inch diameter wires corresponding to 8 gauge, spaced at 4 inches on center typically. Additional cross wires maintain an 11/16 inch center-to-center spacing. All steel wire mesh is specified to be hot-dip galvanized.
