Mechanical equipment mounts to a prefabricated or solid pressure-treated wood curb resting on solid pressure-treated wood blocking and the roof assembly. Rigid insulation lines the prefabricated curb, while roofing extends up and over the curb assembly. Sealing material and prefinished metal flashing and counterflashing on high-temperature self-adhering membrane protect the exterior junction. Mineral fiber and smoke seal act as an air barrier beneath the mechanical equipment.

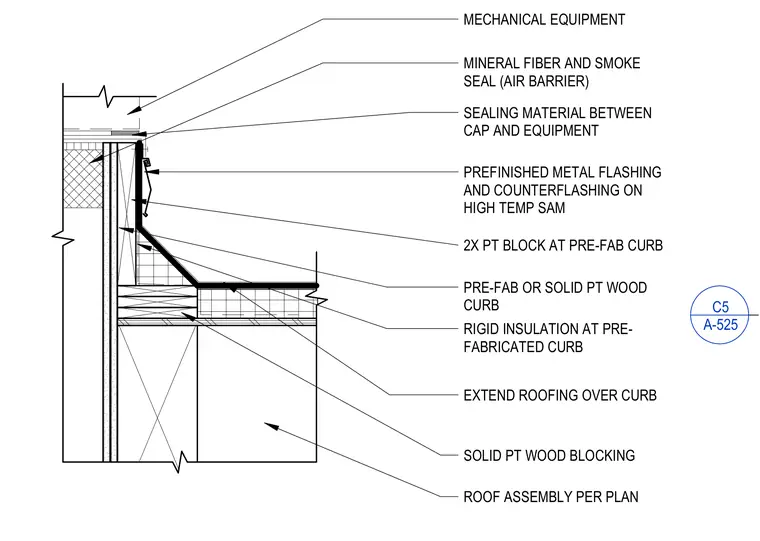

PREFINISHED METAL FLASHING AND COUNTERFLASHING ON HIGH TEMP SAM SEALING MATERIAL BETWEEN CAP AND EQUIPMENT 2X PT BLOCK AT PRE-FAB CURB RIGID INSULATION AT PRE- FABRICATED CURB PRE-FAB OR SOLID PT WOOD CURB SOLID PT WOOD BLOCKING MINERAL FIBER AND SMOKE SEAL (AIR BARRIER) EXTEND ROOFING OVER CURB MECHANICAL EQUIPMENT ROOF ASSEMBLY PER PLAN C5 A-525
