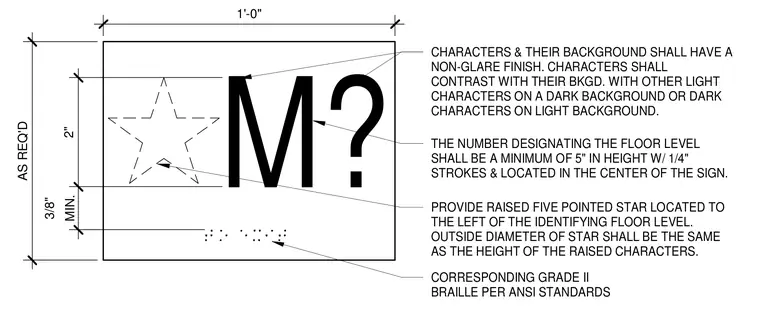

This tactile level identification sign features raised floor designation characters centered on the sign with a minimum height of five inches and quarter-inch strokes. A raised five-pointed star is positioned to the left of the identifying level, with an outside diameter matching the height of the raised characters. Corresponding Grade II braille is provided along the lower portion of the assembly per ANSI standards. Both the characters and their background possess a non-glare finish with high visual contrast. The sign dimensions measure one foot in width with variable height as required.
1'-0" AS REQ'D M? 2" MIN. 3/8" PROVIDE RAISED FIVE POINTED STAR LOCATED TO THE LEFT OF THE IDENTIFYING FLOOR LEVEL. OUTSIDE DIAMETER OF STAR SHALL BE THE SAME AS THE HEIGHT OF THE RAISED CHARACTERS. THE NUMBER DESIGNATING THE FLOOR LEVEL SHALL BE A MINIMUM OF 5" IN HEIGHT W/ 1/4" STROKES & LOCATED IN THE CENTER OF THE SIGN. CHARACTERS & THEIR BACKGROUND SHALL HAVE A NON-GLARE FINISH. CHARACTERS SHALL CONTRAST WITH THEIR BKGD. WITH OTHER LIGHT CHARACTERS ON A DARK BACKGROUND OR DARK CHARACTERS ON LIGHT BACKGROUND. CORRESPONDING GRADE II BRAILLE PER ANSI STANDARDS
