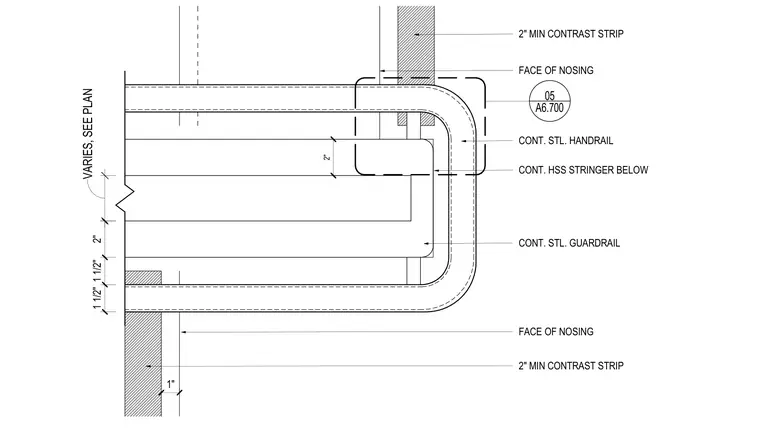

Layout of a stair intermediate landing features a continuous hollow structural section stringer positioned below. A continuous steel handrail and continuous steel guardrail wrap the landing edge, aligned with the face of the nosing. A minimum two-inch contrast strip is integrated at the tread nosing. Clearances and dimensions vary as sized per plan.
FACE OF NOSING CONT. STL. GUARDRAIL FACE OF NOSING CONT. STL. HANDRAIL CONT. HSS STRINGER BELOW 1 1/2" 1 1/2" 2" 2" 2" MIN CONTRAST STRIP 2" MIN CONTRAST STRIP 1" 05 A6.700 VARIES, SEE PLAN
