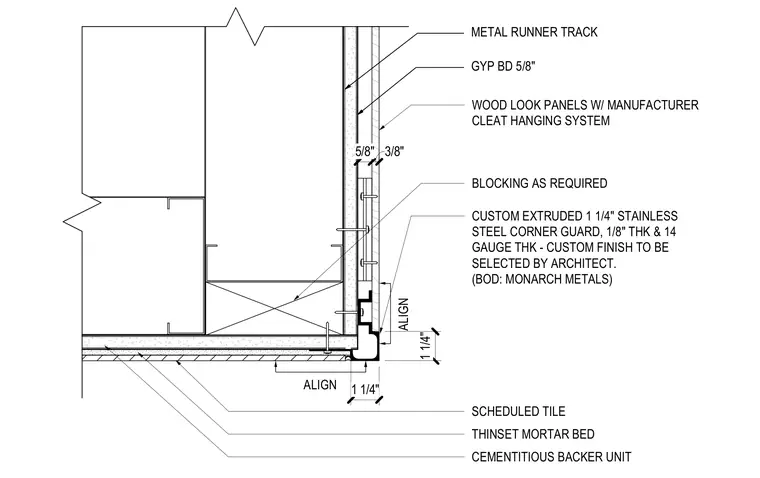

A custom extruded 1-1/4-inch stainless steel corner guard, 1/8-inch and 14-gauge thick, protects the exterior wall corner finished with wood-look panels and tile. The assembly is built over metal framing with runner tracks and 5/8-inch gypsum board. Wood-look panels are hung using a manufacturer cleat hanging system supported by wood blocking as required. Adjacent tile is set in a thinset mortar bed over a cementitious backer unit.
ALIGN ALIGN METAL RUNNER TRACK GYP BD 5/8" CUSTOM EXTRUDED 1 1/4" STAINLESS STEEL CORNER GUARD, 1/8" THK & 14 GAUGE THK - CUSTOM FINISH TO BE SELECTED BY ARCHITECT. (BOD: MONARCH METALS) 5/8" 3/8" WOOD LOOK PANELS W/ MANUFACTURER CLEAT HANGING SYSTEM 1 1/4" 1 1/4" CEMENTITIOUS BACKER UNIT SCHEDULED TILE BLOCKING AS REQUIRED THINSET MORTAR BED
