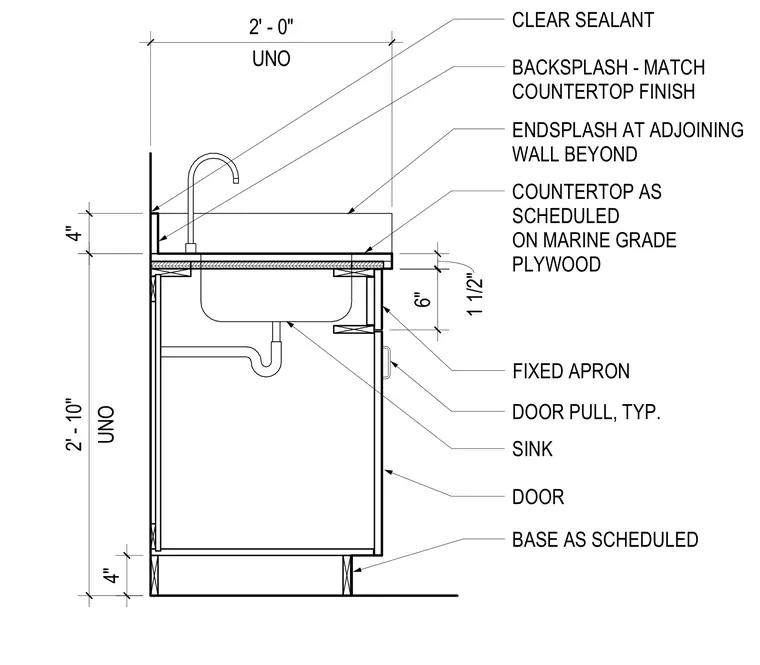

A base cabinet sits on a base as scheduled with a door and typical door pull on the front face, featuring a fixed apron beneath the countertop. The countertop is set on marine grade plywood and finished with a matching backsplash and an endsplash at the adjoining wall beyond, sealed with clear sealant. A sink is integrated into the countertop assembly.
4" 4" UNO 2' - 0" UNO 2' - 10" 1 1/2" BASE AS SCHEDULED 6" BACKSPLASH - MATCH COUNTERTOP FINISH ENDSPLASH AT ADJOINING WALL BEYOND CLEAR SEALANT COUNTERTOP AS SCHEDULED ON MARINE GRADE PLYWOOD FIXED APRON DOOR PULL, TYP. DOOR SINK
