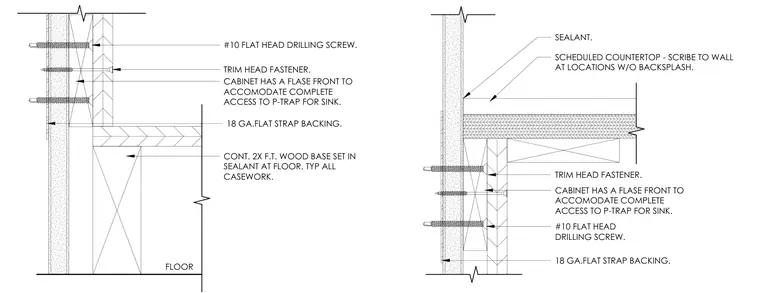

Base cabinets and countertops are anchored to wall framing with number 10 flat head drilling screws and trim head fasteners through 18 gauge flat strap backing. A continuous 2x wood base set in sealant is installed at the floor beneath casework. The upper detail shows a scheduled countertop scribed to the wall without a backsplash, sealed at the joint.
FLOOR CONT. 2X F.T. WOOD BASE SET IN SEALANT AT FLOOR, TYP ALL CASEWORK. 18 GA.FLAT STRAP BACKING. CABINET HAS A FLASE FRONT TO ACCOMODATE COMPLETE ACCESS TO P-TRAP FOR SINK. TRIM HEAD FASTENER. #10 FLAT HEAD DRILLING SCREW. SCHEDULED COUNTERTOP - SCRIBE TO WALL AT LOCATIONS W/O BACKSPLASH. SEALANT. #10 FLAT HEAD DRILLING SCREW. TRIM HEAD FASTENER. CABINET HAS A FLASE FRONT TO ACCOMODATE COMPLETE ACCESS TO P-TRAP FOR SINK. 18 GA.FLAT STRAP BACKING.
