Architectural · A-MSNXV

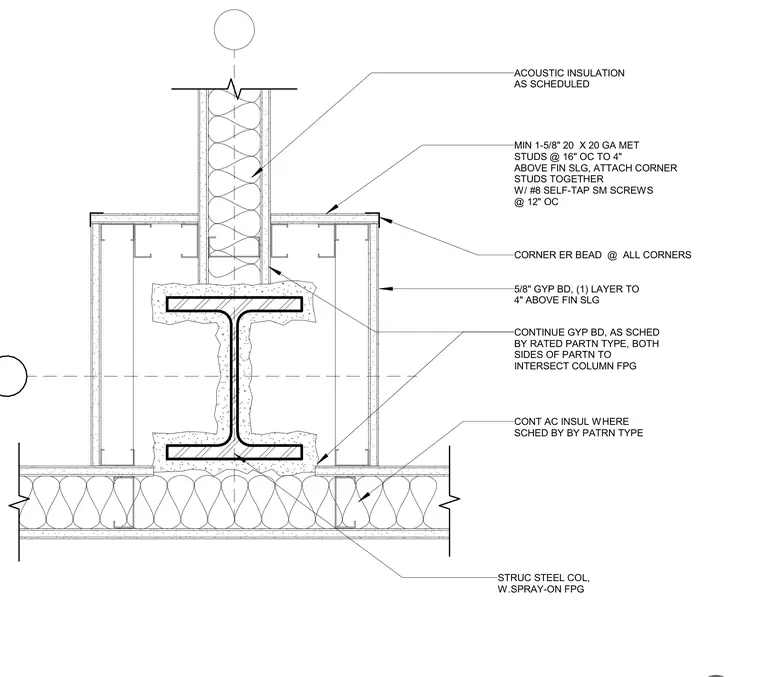

Rated Partition Intersection at Structural Steel Column

Materials

Elements

About this detail

A rated partition intersects a structural steel column wrapped in spray-applied fireproofing, framed with minimum 1-5/8 inch twenty gauge metal studs spaced at sixteen inches on center up to four inches above the finished ceiling. Corner studs are fastened together with number eight self-tapping sheet metal screws at twelve inches on center and finished with corner bead at all corners. Five-eighths inch gypsum board is applied in one layer up to four inches above the finished ceiling on both sides of the partition to intersect the column fireproofing. Acoustic insulation is installed within the partition cavity as scheduled by the partition type.
