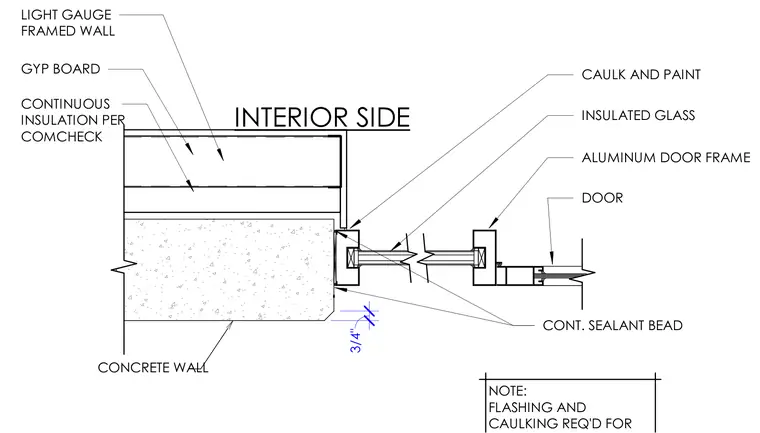

An aluminum door frame integrates with an insulated glass door unit adjacent to a cast-in-place or tilt-up concrete wall. The interior side receives a light-gauge framed wall finished with gypsum board and continuous insulation sized per ComCheck. Continuous sealant beads seal the joint between the aluminum frame and the concrete opening, supplemented by caulk and paint at the interior transition. Flashing and caulking are provided at the interior side of the insulated glass door assembly.
NOTE: FLASHING AND CAULKING REQ'D FOR DOOR INSULATED GLASS INTERIOR SIDE CONCRETE WALL ALUMINUM DOOR FRAME CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD CONT. SEALANT BEAD CONTINUOUS INSULATION PER COMCHECK 3/4" XE 4 4 k A- 7 A 4.A
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
