An ADA compliant base cabinet features an integral toe kick at the finished floor and a countertop scribed to walls on all sides with a matching backsplash. The casework includes heavy-use commercial grade soft close concealed hinges at the top and bottom in brushed stainless steel, with a middle hinge provided as required. A Mockett DP3B four-inch finger pull in matte finish is mounted to the door, and all exposed interior surfaces are finished with white melamine.

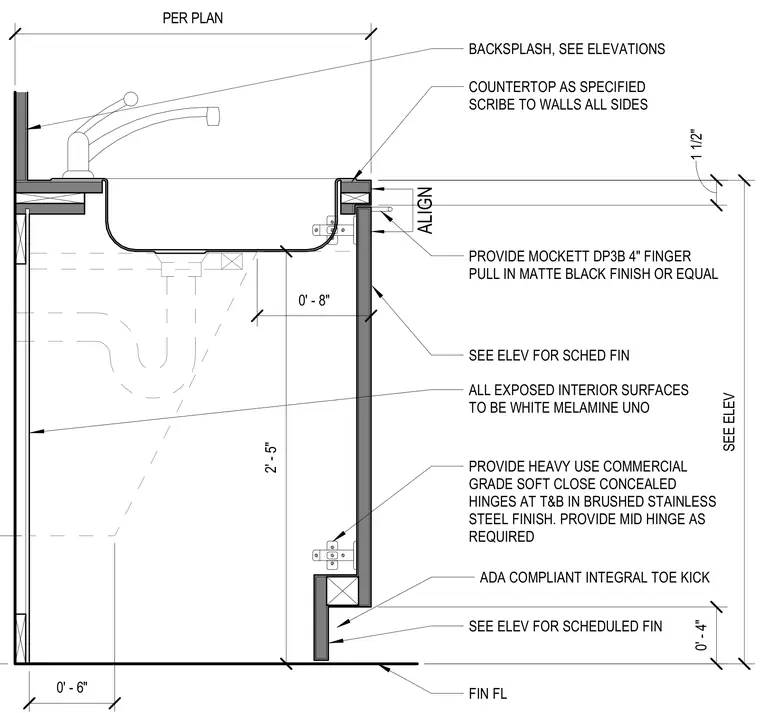

ALIGN PER PLAN 1 1/2" 0' - 4" SEE ELEV 0' - 8" 2' - 5" 0' - 6" BACKSPLASH, SEE ELEVATIONS COUNTERTOP AS SPECIFIED SCRIBE TO WALLS ALL SIDES PROVIDE MOCKETT DP3B 4" FINGER PULL IN MATTE BLACK FINISH OR EQUAL SEE ELEV FOR SCHED FIN ALL EXPOSED INTERIOR SURFACES TO BE WHITE MELAMINE UNO PROVIDE HEAVY USE COMMERCIAL GRADE SOFT CLOSE CONCEALED HINGES AT T&B IN BRUSHED STAINLESS STEEL FINISH. PROVIDE MID HINGE AS REQUIRED SEE ELEV FOR SCHEDULED FIN FIN FL ADA COMPLIANT INTEGRAL TOE KICK
