Architectural · A-MSD5A

Backing Plate Type D

Materials

Steel

Elements

Walls Connections / Plates

Connections

Welded Connection

About this detail

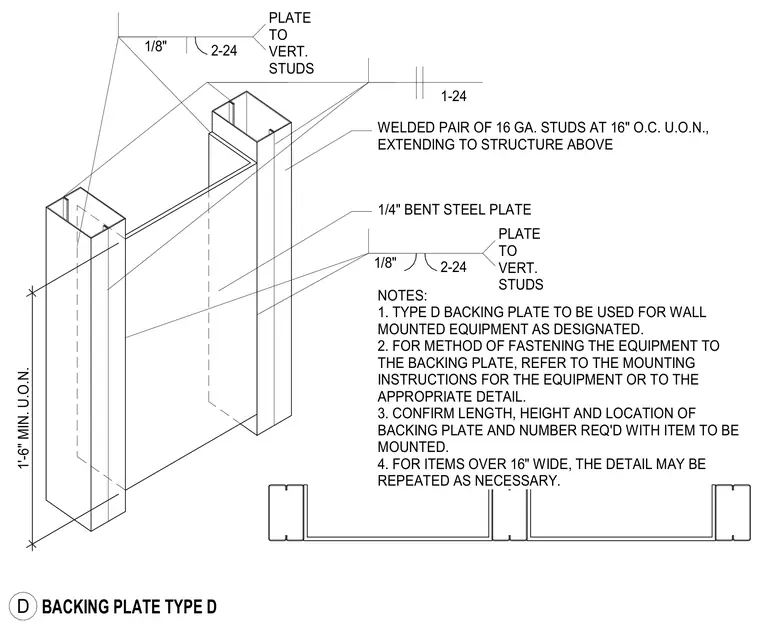

A one-quarter-inch bent steel plate spans horizontally between a welded pair of sixteen-gauge studs spaced at sixteen inches on center and extending to the structure above, with a minimum height of one foot six inches unless otherwise noted. The plate connects to the vertical studs with welds sized at one-eighth inch. Type D backing plates are designated for wall-mounted equipment, requiring confirmation of length, height, location, and quantity based on the mounted item, and may be repeated as necessary for items wider than sixteen inches.
