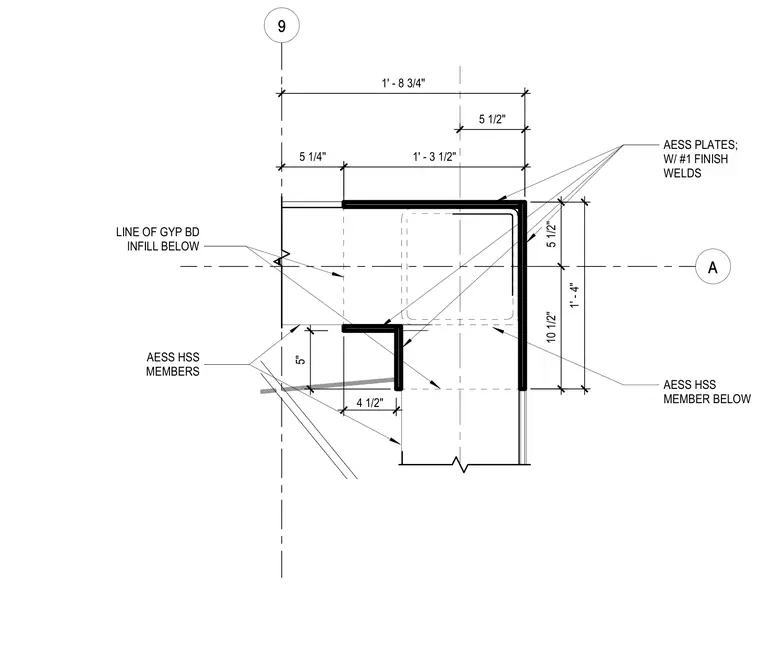

Architecturally exposed structural steel hollow structural section members connect with custom plates finished with number 1 finish welds. Gypsum board infill runs below the structural members to enclose the assembly. Dimensions establish the layout of the hollow structural section members and plates.
A 9 AESS PLATES; W/ #1 FINISH WELDS AESS HSS MEMBERS 1 ' - 4 " 1 ' - 3 1 / 2 " 4 1 / 2 " 5 " LINE OF GYP BD INFILL BELOW 5 1 / 4 " 1 ' - 8 3 / 4 " 1 0 1 / 2 " 5 1 / 2 " 5 1 / 2 " AESS HSS MEMBER BELOW
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
