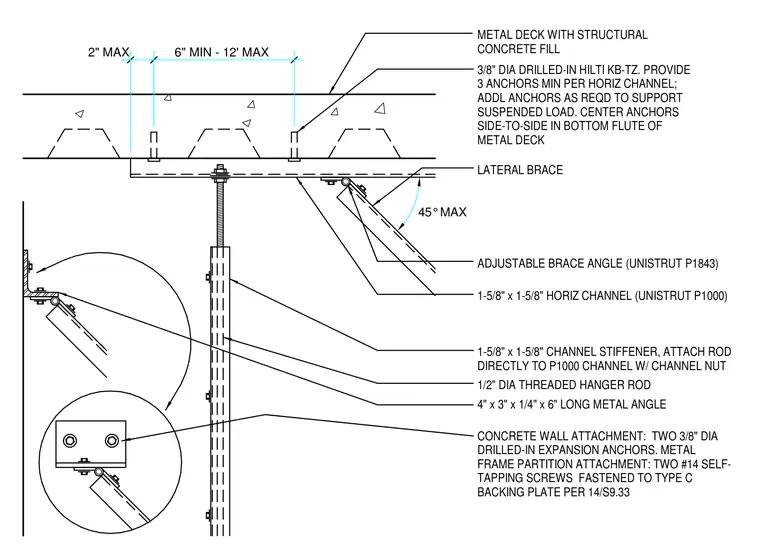

A 1-5/8 inch by 1-5/8 inch horizontal Unistrut P1000 channel attaches directly to the underside of a metal deck with structural concrete fill using three 3/8 inch diameter drilled-in Hilti KB-TZ anchors centered in the bottom flute. A 1/2 inch diameter threaded hanger rod drops from a channel stiffener and attaches to the P1000 channel with a channel nut. An adjustable Unistrut P1843 brace angle provides lateral bracing at a 45 degree maximum angle. The assembly secures to a concrete wall using two 3/8 inch diameter drilled-in expansion anchors and a 4 inch by 3 inch by 1/4 inch by 6 inch long metal angle, or to a metal frame partition using two number 14 self-tapping screws fastened to a type C backing plate.
45° MAX 6" MIN - 12' MAX 2" MAX METAL DECK WITH STRUCTURAL CONCRETE FILL 3/8" DIA DRILLED-IN HILTI KB-TZ. PROVIDE 3 ANCHORS MIN PER HORIZ CHANNEL; ADDL ANCHORS AS REQD TO SUPPORT SUSPENDED LOAD. CENTER ANCHORS SIDE-TO-SIDE IN BOTTOM FLUTE OF METAL DECK LATERAL BRACE ADJUSTABLE BRACE ANGLE (UNISTRUT P1843) 1-5/8" x 1-5/8" HORIZ CHANNEL (UNISTRUT P1000) 1-5/8" x 1-5/8" CHANNEL STIFFENER, ATTACH ROD DIRECTLY TO P1000 CHANNEL W/ CHANNEL NUT 1/2" DIA THREADED HANGER ROD 4" x 3" x 1/4" x 6" LONG METAL ANGLE CONCRETE WALL ATTACHMENT: TWO 3/8" DIA DRILLED-IN EXPANSION ANCHORS. METAL FRAME PARTITION ATTACHMENT: TWO #14 SELF- TAPPING SCREWS FASTENED TO TYPE C BACKING PLATE PER 14/S9.33
