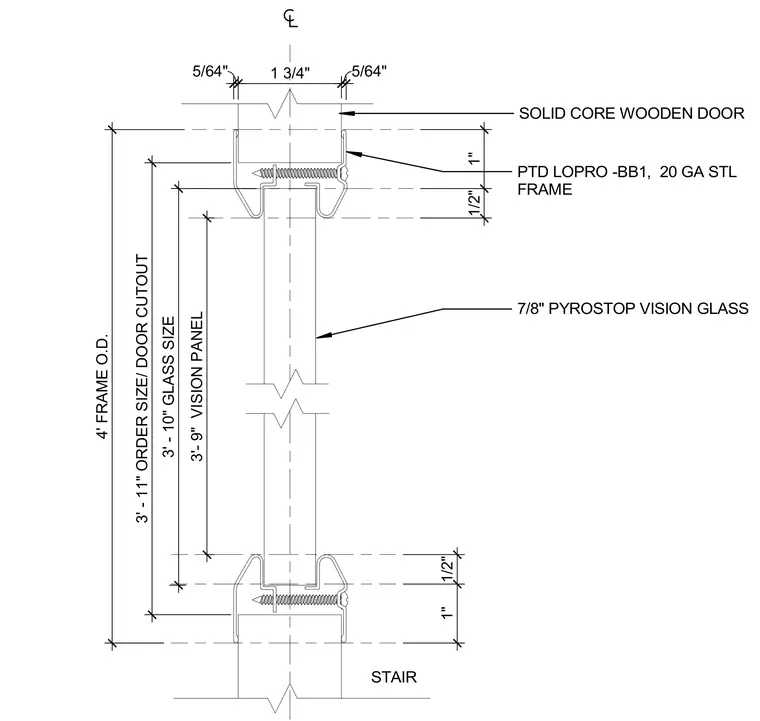

A 7/8-inch Pyrostop vision glass panel is installed within a 1-3/4-inch solid core wooden door using a 20-gauge painted low-profile steel frame and fastener screws. The frame setup includes precise dimensional clearances and tolerances for the glass size, door cutout, and overall frame outside diameter. This assembly provides a fire-rated vision lite in wood stairwell doors.
SOLID CORE WOODEN DOOR 7/8" PYROSTOP VISION GLASS 1 3/4" 5/64" 5/64" PTD LOPRO -BB1, 20 GA STL FRAME 1/2" 1" STAIR 3'- 9" VISION PANEL 3' - 10" GLASS SIZE 3' - 11" ORDER SIZE/ DOOR CUTOUT 4' FRAME O.D. 1" 1/2"
