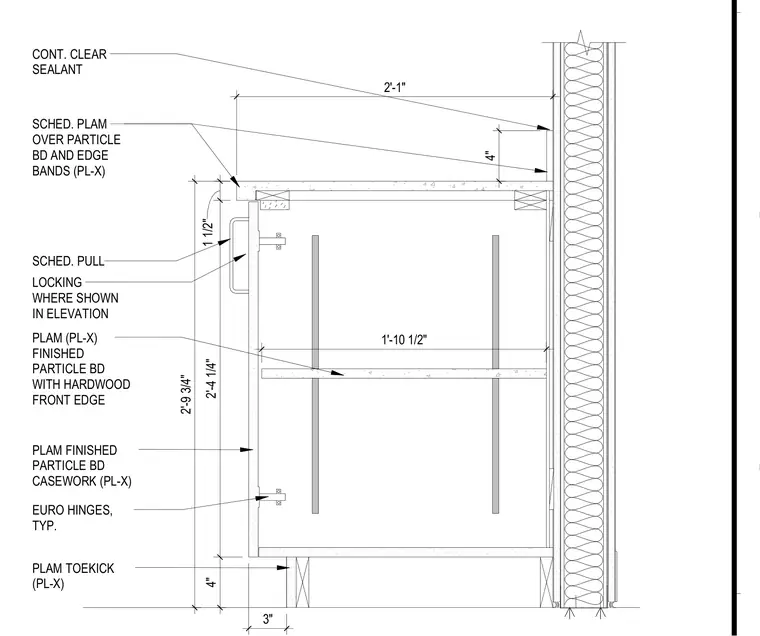

The base cabinet assembly consists of scheduled plastic laminate over particle board with edge bands and hardwood front edges, supported by a toe kick base. Doors are hung with typical European hinges and feature scheduled pulls with locking hardware where shown in elevation. Continuous clear sealant is applied at the wall junction.
2'-1" 4" 1 1/2" 2'-4 1/4" 4" 2'-9 3/4" 1'-10 1/2" 3" CONT. CLEAR SEALANT SCHED. PLAM OVER PARTICLE BD AND EDGE BANDS (PL-X) SCHED. PULL LOCKING WHERE SHOWN IN ELEVATION PLAM (PL-X) FINISHED PARTICLE BD WITH HARDWOOD FRONT EDGE PLAM FINISHED PARTICLE BD CASEWORK (PL-X) EURO HINGES, TYP. PLAM TOEKICK (PL-X)
