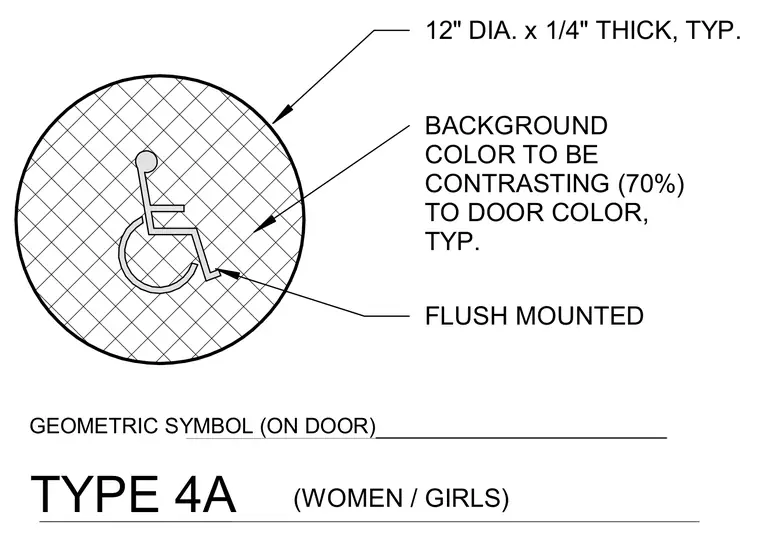

A circular geometric accessibility symbol is flush mounted on the door for women and girls restroom identification. The circular plate measures twelve inches in diameter by one-quarter inch thick with a typical flush mount installation. The background color requires a seventy percent contrasting value relative to the door color.
TYPE 4A 12" DIA. x 1/4" THICK, TYP. BACKGROUND COLOR TO BE CONTRASTING (70%) TO DOOR COLOR, TYP. GEOMETRIC SYMBOL (ON DOOR) FLUSH MOUNTED (WOMEN / GIRLS)
