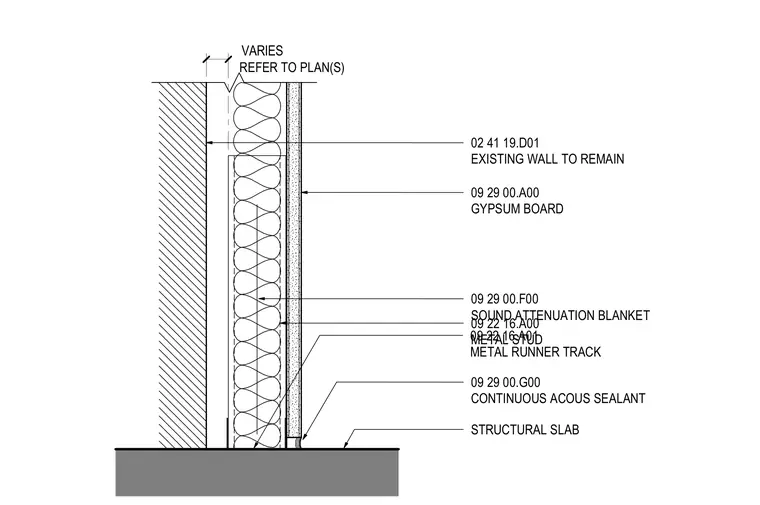

Cold-formed steel metal studs fit into a metal runner track positioned against a structural slab. Sound attenuation blankets fill the stud cavity for acoustic performance. Gypsum board is fastened to the exterior face of the stud framing. Continuous acoustic sealant is applied at the base of the gypsum board along the structural slab. An existing wall to remain is located adjacent to the new partition assembly with a variable clearance gap.
09 22 16.A01 METAL RUNNER TRACK 09 22 16.A00 METAL STUD 09 29 00.F00 SOUND ATTENUATION BLANKET 09 29 00.A00 GYPSUM BOARD 09 29 00.G00 CONTINUOUS ACOUS SEALANT STRUCTURAL SLAB 02 41 19.D01 EXISTING WALL TO REMAIN REFER TO PLAN(S) VARIES
