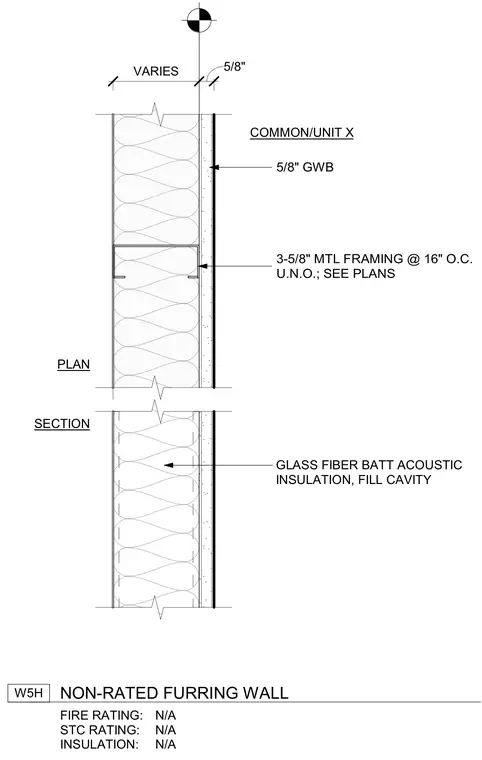

This non-rated furring wall assembly consists of three-and-five-eighths-inch metal framing spaced at sixteen inches on center unless noted otherwise, surfaced with five-eighths-inch gypsum wallboard. Glass fiber batt acoustic insulation fills the framing cavity. A variable dimension accommodates field conditions.
5/8" GWB 3-5/8" MTL FRAMING @ 16" O.C. U.N.O.; SEE PLANS GLASS FIBER BATT ACOUSTIC INSULATION, FILL CAVITY PLAN SECTION COMMON/UNIT X FIRE RATING: STC RATING: INSULATION: W5H NON-RATED FURRING WALL N/A N/A N/A VARIES 5/8"
