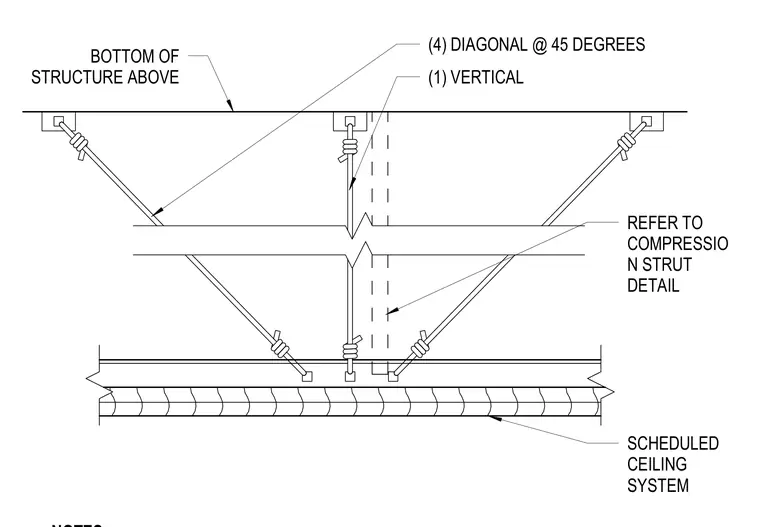

Suspended ceiling framing is anchored to the bottom of the structure above using four diagonal wire braces oriented at forty-five degrees combined with one vertical hanger wire. A compression strut detail is referenced for intermediate support stabilization. The hanger wires connect the overhead structure to the scheduled ceiling system below.
REFER TO COMPRESSIO N STRUT DETAIL (1) VERTICAL (4) DIAGONAL @ 45 DEGREES BOTTOM OF STRUCTURE ABOVE SCHEDULED CEILING SYSTEM
