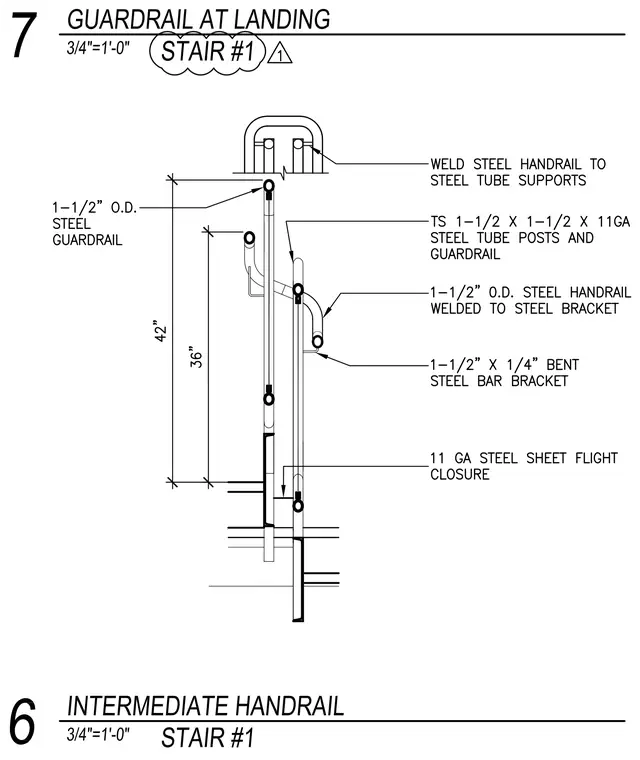

A 1-1/2-inch outer diameter steel guardrail is mounted at 42 inches above the landing, supported by 1-1/2 by 1-1/2 by 11-gauge hollow structural section steel tube posts and guardrail members. An intermediate handrail is positioned at 36 inches, consisting of a 1-1/2-inch outer diameter steel handrail welded to a 1-1/2 by 1/4-inch bent steel bar bracket. The steel handrail is welded to the steel tube supports, and an 11-gauge steel sheet flight closure completes the junction at the stair framing.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
