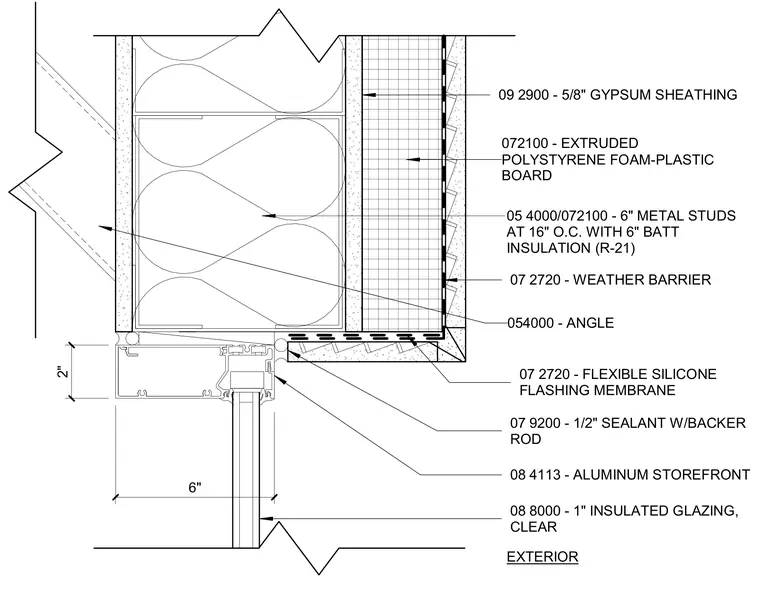

An aluminum storefront frame with one-inch insulated clear glazing is anchored beneath a cold-formed steel framed wall. The wall consists of six-inch metal studs spaced at sixteen inches on center with six-inch batt insulation providing R-21 thermal performance, faced with five-eighths-inch gypsum sheathing. A weather barrier and extruded polystyrene foam-plastic board wrap the exterior of the assembly. A flexible silicone flashing membrane ties the storefront head to the backup wall over an angle. A one-half-inch sealant joint with a backer rod seals the junction between the aluminum storefront frame and the exterior finish.
05 4000/072100 - 6" METAL STUDS AT 16" O.C. WITH 6" BATT INSULATION (R-21) 6" 09 2900 - 5/8" GYPSUM SHEATHING 07 2720 - WEATHER BARRIER 2" 08 8000 - 1" INSULATED GLAZING, CLEAR 08 4113 - ALUMINUM STOREFRONT 07 9200 - 1/2" SEALANT W/BACKER ROD 07 2720 - FLEXIBLE SILICONE FLASHING MEMBRANE EXTERIOR 072100 - EXTRUDED POLYSTYRENE FOAM-PLASTIC BOARD 054000 - ANGLE
