An aluminum alloy T-mold transition strip connects adjacent scheduled carpet or walk-off mat flooring finishes. The flooring transition aligns directly with the centerline of the door leaf above. The finish floor build-up assembly varies as necessary to achieve a flush transition between the adjoining floor surfaces.

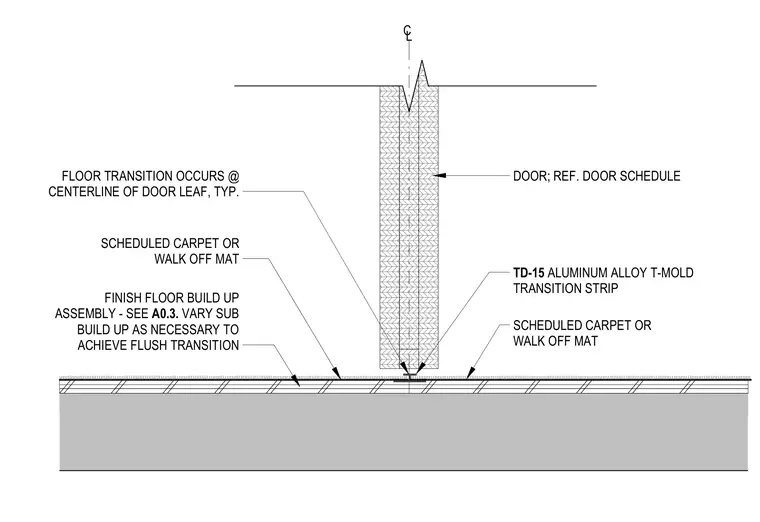

SCHEDULED CARPET OR WALK OFF MAT DOOR; REF. DOOR SCHEDULE TD-15 ALUMINUM ALLOY T-MOLD TRANSITION STRIP FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L SCHEDULED CARPET OR WALK OFF MAT FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION
