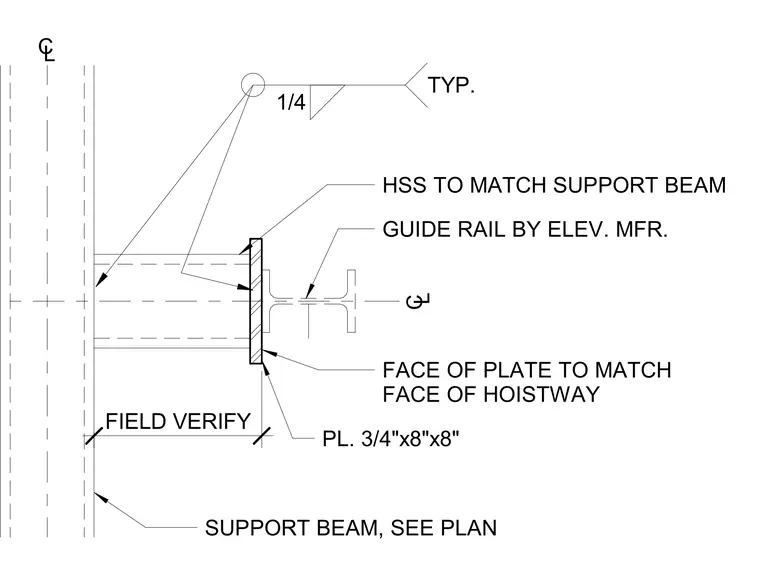

A hollow structural section member matches the support beam and connects to a three-quarter-inch by eight-inch by eight-inch steel plate. The face of the plate aligns with the face of the hoistway support beam, while the elevator manufacturer provides the guide rail. Typical one-quarter-inch fillet welds secure the connection. Dimensions and exact alignments are field verified.
HSS TO MATCH SUPPORT BEAM GUIDE RAIL BY ELEV. MFR. PL. 3/4"x8"x8" FACE OF PLATE TO MATCH FACE OF HOISTWAY SUPPORT BEAM, SEE PLAN C L C L 1/4 TYP. FIELD VERIFY
