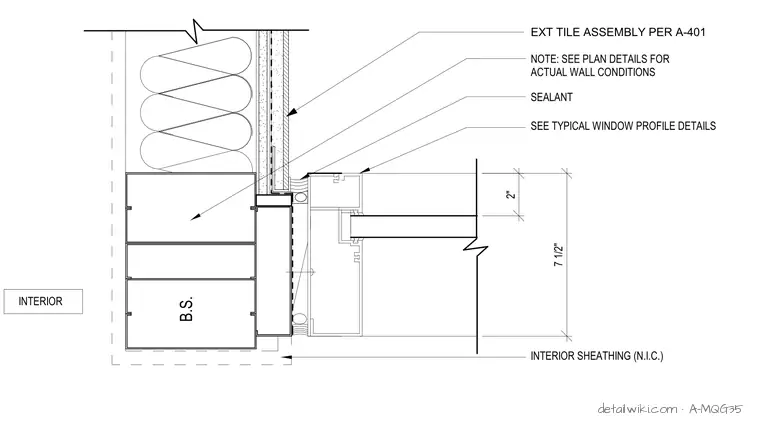

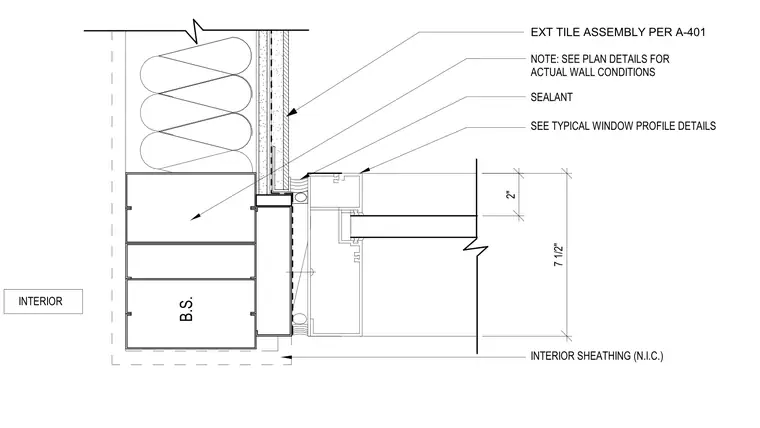

This window wall detail shows the head condition transitioning into an exterior tile assembly per drawing A-401. A sealant joint seals the interface between the window frame and the adjacent wall construction. Typical window profile details govern the window head extrusions. Interior sheathing is installed not in contract, with a two-inch vertical dimension noted at the frame connection and an overall dimension of seven and one-half inches. Plan details should be referenced for actual wall conditions.
B.S. SEE TYPICAL WINDOW PROFILE DETAILS SEALANT INTERIOR SHEATHING (N.I.C.) 2" 7 1/2" INTERIOR NOTE: SEE PLAN DETAILS FOR ACTUAL WALL CONDITIONS EXT TILE ASSEMBLY PER A-401
