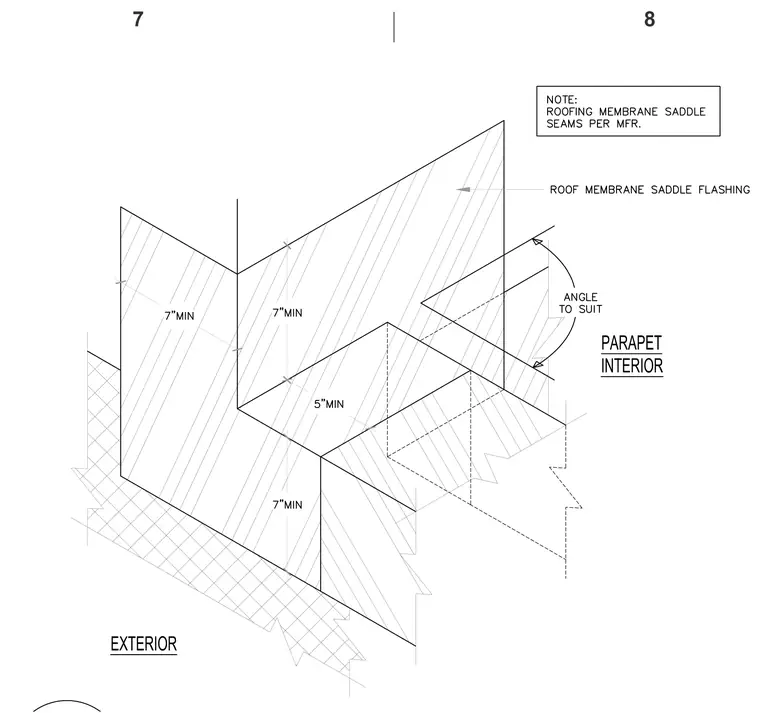

Roof membrane saddle flashing is installed at a parapet wall corner, with roofing membrane saddle seams applied per manufacturer specifications. Minimum dimensional clearances include seven inches vertically on the parapet surfaces and five inches horizontally across the corner saddle. The angle is adjusted to suit the specific site conditions at the exterior wall intersection.
