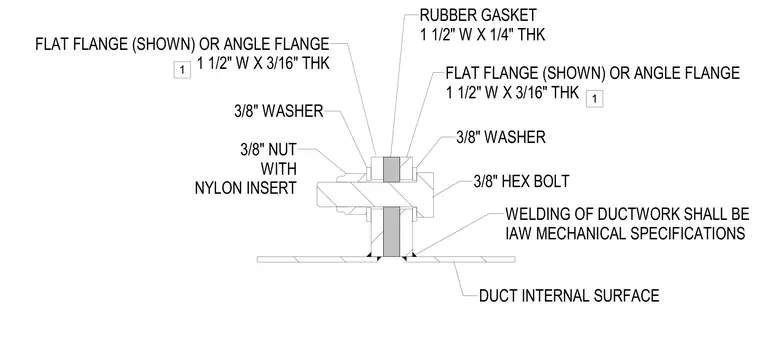

Two duct sections meet end to end, sealed by a one-and-a-half-inch-wide by quarter-inch-thick rubber gasket compressed between them. Mating flat or angle steel flanges measuring one and a half inches wide by three-sixteenths of an inch thick are welded to the internal duct surface in accordance with mechanical specifications. Three-eighth-inch hex bolts secure the connection through washers on both sides and a three-eighth-inch nut with a nylon insert.
RUBBER GASKET 1 1/2" W X 1/4" THK 3/8" WASHER 3/8" NUT WITH NYLON INSERT FLAT FLANGE (SHOWN) OR ANGLE FLANGE 1 1/2" W X 3/16" THK 3/8" WASHER 3/8" HEX BOLT DUCT INTERNAL SURFACE WELDING OF DUCTWORK SHALL BE IAW MECHANICAL SPECIFICATIONS FLAT FLANGE (SHOWN) OR ANGLE FLANGE 1 1/2" W X 3/16" THK 1 1
