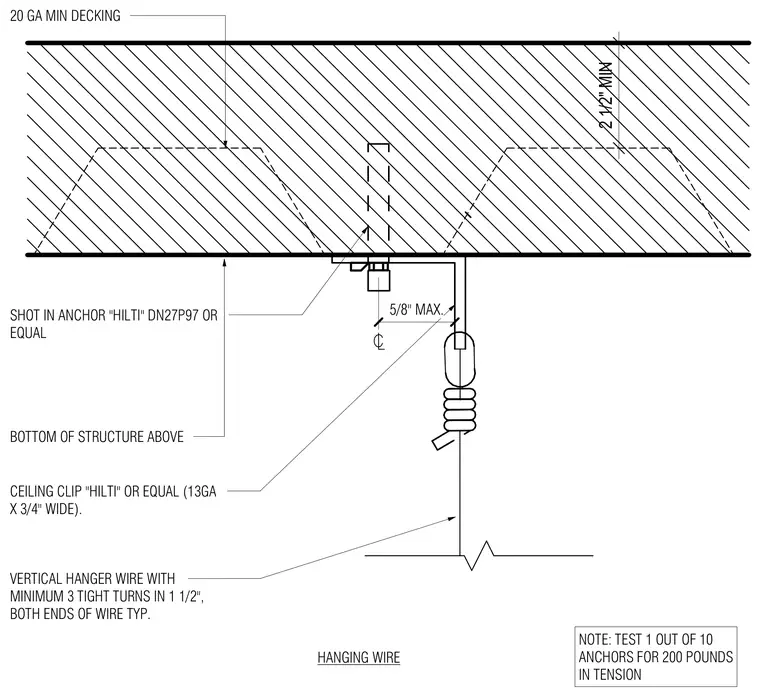

A thirteen gauge by three-quarter inch wide ceiling clip is fastened to the underside of the structural slab using a shot-in anchor. A vertical hanger wire connects to the clip with a minimum of three tight turns in one and one-half inches at both ends. The assembly hangs below a minimum twenty gauge metal decking with two and one-half inches of concrete topping. One out of every ten anchors must be tested for two hundred pounds in tension.
BOTTOM OF STRUCTURE ABOVE CEILING CLIP "HILTI" OR EQUAL (13GA X 3/4" WIDE). SHOT IN ANCHOR "HILTI" DN27P97 OR EQUAL VERTICAL HANGER WIRE WITH MINIMUM 3 TIGHT TURNS IN 1 1/2", BOTH ENDS OF WIRE TYP. HANGING WIRE 20 GA MIN DECKING 2 1/2" MIN NOTE: TEST 1 OUT OF 10 ANCHORS FOR 200 POUNDS IN TENSION 5/8" MAX.
